Real Time Group
![UI-501S/D[RTTPS]](WEFiles/Image/WEImage/UI501RTTPM-WE282526b447.png)
UI-501S/D[RTTPS]
Real Time Temperature Profile System
Real Time Temperature Profile System
RTTPS [Real Time Temperature Profile System]
As a system judging & monitoring a production environment through conveyor speed and PCB detection using a proximity sensor and photo sensor, it fixes up to 32 channels temperature sensor inside the reflow, judges in real time if the temperature change of reflow is normal or not, able to obtain such effects as productivity increase & prevention of a large quantity defect etc. and check the condition of equipment remotely in real time using network version.
As a system judging & monitoring a production environment through conveyor speed and PCB detection using a proximity sensor and photo sensor, it fixes up to 32 channels temperature sensor inside the reflow, judges in real time if the temperature change of reflow is normal or not, able to obtain such effects as productivity increase & prevention of a large quantity defect etc. and check the condition of equipment remotely in real time using network version.
When the machine is in operation for 24 hours, it is profiling about 5,000 times a day.
UI-510 [RTTPS-wAVE]
Real Time Temperature Profile System
Real Time Temperature Profile System
RTTPS [Real Time Temperature Profile System]
The UI-510 RTTPS enables automatic profile by monitoring real-time temperature changes within the preheaters and solder pot/coolers,
by fixing temperature sensors inside the wave machines. Proximity and impeller sensors enable changes in conveyor and motor speed,
along with dip time, to improve productivity and preventing mass defects. UI-510 also prevents fire by fire detection sensors, and can be monitored
real-time from remote location via network.
The UI-510 RTTPS enables automatic profile by monitoring real-time temperature changes within the preheaters and solder pot/coolers,
by fixing temperature sensors inside the wave machines. Proximity and impeller sensors enable changes in conveyor and motor speed,
along with dip time, to improve productivity and preventing mass defects. UI-510 also prevents fire by fire detection sensors, and can be monitored
real-time from remote location via network.
When the machine is in operation for 24 hours, it is profiling about 5,000 times a day.
>> By installing a distance sensor that can check the solder level in the solder pot; so it can help to improve the productivity and reduce the defect rate.
UI-701 [RPPM]
Real time O2 PPM profile system
Real time O2 PPM profile system
RPPM [Real time O2 PPM profile system]

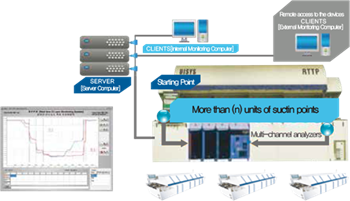

UI-701 can realize profile automation by monitoring real-time oxygen distribution within equipment by fixing multi-channel suction points in the reflow machine, thus acquiring more than 130 profiles per day by checking continuous oxygen changes, along with enhanced productivity and prevention of mass defects. Oxygen concentration can be checked up to 16 zones of the Reflow machine.
The equipment can be maintained real-time from remote location via network version.
UI-701 can realize profile automation by monitoring real-time oxygen distribution within equipment by fixing multi-channel suction points in the reflow machine, thus acquiring more than 130 profiles per day by checking continuous oxygen changes, along with enhanced productivity and prevention of mass defects. Oxygen concentration can be checked up to 16 zones of the Reflow machine.
The equipment can be maintained real-time from remote location via network version.
